Description
8.5Gbps 850nm 300M SFP+ Optical Transceiver
Features
Ø Optical interface compliant to IEEE 802.3ae
Ø Electrical interface compliant to SFF-8431
Ø Hot Pluggable
Ø 850nm VCSEL transmitter, PIN photo-detector
Ø Maximum link length of 300m on 2000MHz/km MMF
Ø Operating case temperature: 0 to 70 °C
Ø Low power consumption
Ø All-metal housing for superior EMI performance
Ø Advanced firmware allow customer system encryption
information to be stored in transceiver
Ø Cost effective SFP+ solution, enables higher port densities and greater bandwidth
Ø RoHS6 compliant (lead free)
Applications
Ø Tri Rate 1.0625 / 2.125 / 4.25/8.5Gbp/s Fibre Channel
Ø Other optical links
Product description

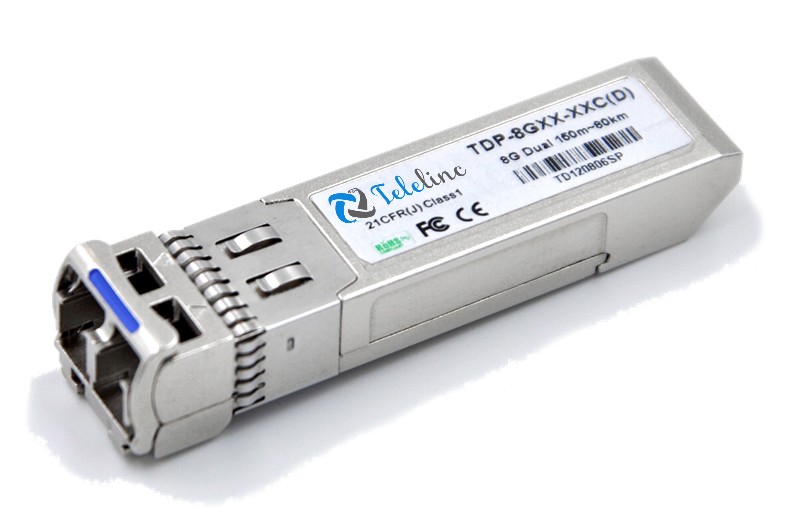

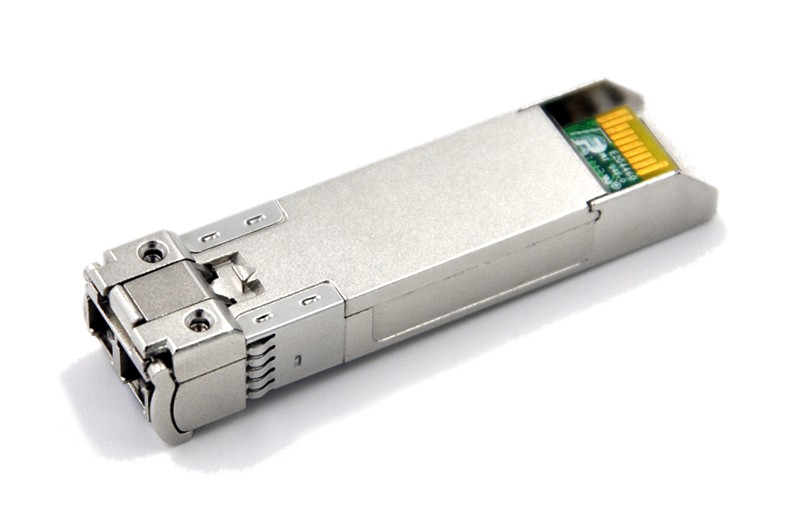

This 850 nm VCSEL 8.5Gigabit SFP+ transceiver is designed to transmit and receive optical data over
50/125 μm or 62.5/125 μm multimode optical fiber
