Description

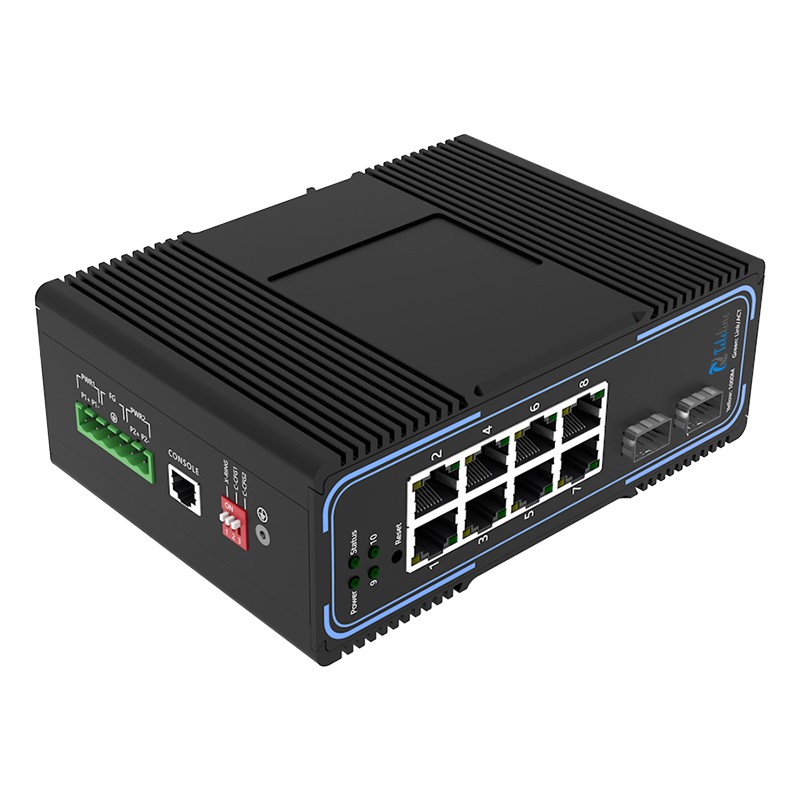

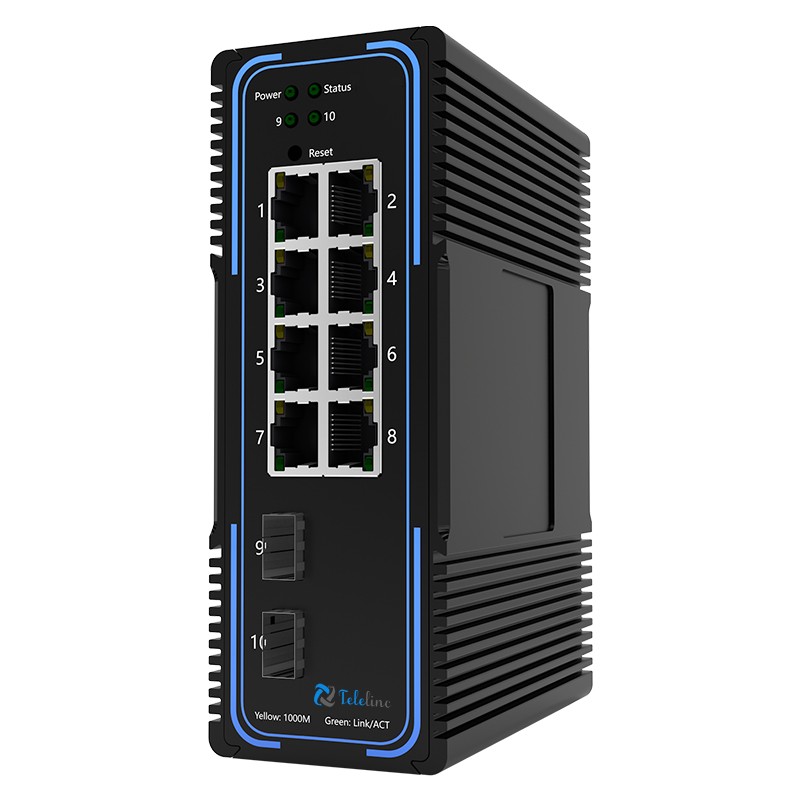

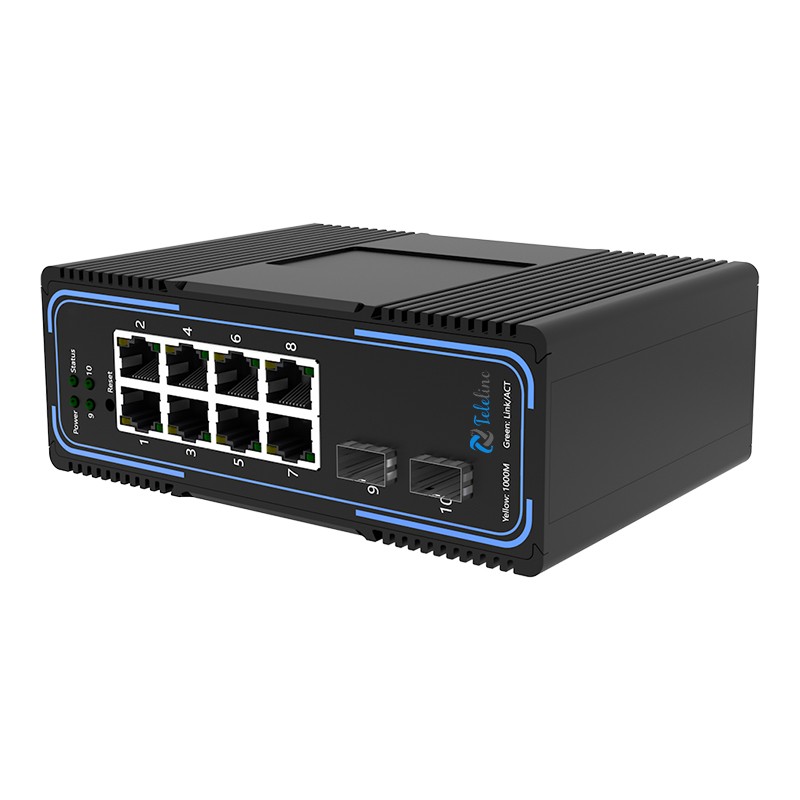

TLM500-8GT2GS 8Ports 10/100/1000MBase and 2 SFP Slots Managed Industrial Switch
The TLM500 series switches provide superior industrial quality with high/low temperature and lightning protection through fanless cooling circuit design, wide operating temperature range and high protection level. They also integrate rich functions such as switching, security and management. Support for the public Ethernet Ring Protection Protocol (ERPS), greatly improving the flexibility and availability of networking, and enhancing the reliability and security of industrial networks.
Description
Downlink：8 * 10/100/1000Base-T Ethernet Ports，and support POE
Uplink：2 * 1000BASE-X SFP
Non-polar DC power supply
Forwarding performance：14.9Mpps
Specifications
Parameters
TLM500-8GT2GS
Downlink
8 * 10/100/1000Base-T Ethernet Ports
Uplink
2 * 1000Base-X SFP
Power
Dual power redundancy
MAC address
8K
buffer(bits)
4M
Power Protect
Non-polar DC power supply
Input voltage
DC:12V~54V （POE 52V）
Power consumption
< 15W （exlcude POE）
Operating environment
-40℃~+85℃
5% to 95% (non-condensing)
Heat dissipation
Natural heat dissipation
DIP switch
One Key Ring
Installation
DIN/Bracket
IP Level
IP40
Surge
IEC 61000-4-5 Level 4
EFT
IEC 61000-4-4 Level 4
ESD
IEC 61000-4-2 Level 4
ERPS Ring for high network availability
Establishing an Ethernet ring network through the ERPS protocol can simplify deployment and provide redundant links. When devices and links are faulty, they can quickly self-heal (less than 50ms), ensuring uninterrupted services and building a highly available network.
Supports one-click ring network, which can be used directly without complicated function configuration.
Fanless design, green communication
Fanless design, while reducing the power consumption of the device, the silent design allows you to avoid the noise.
Power redundancy protects the network stability

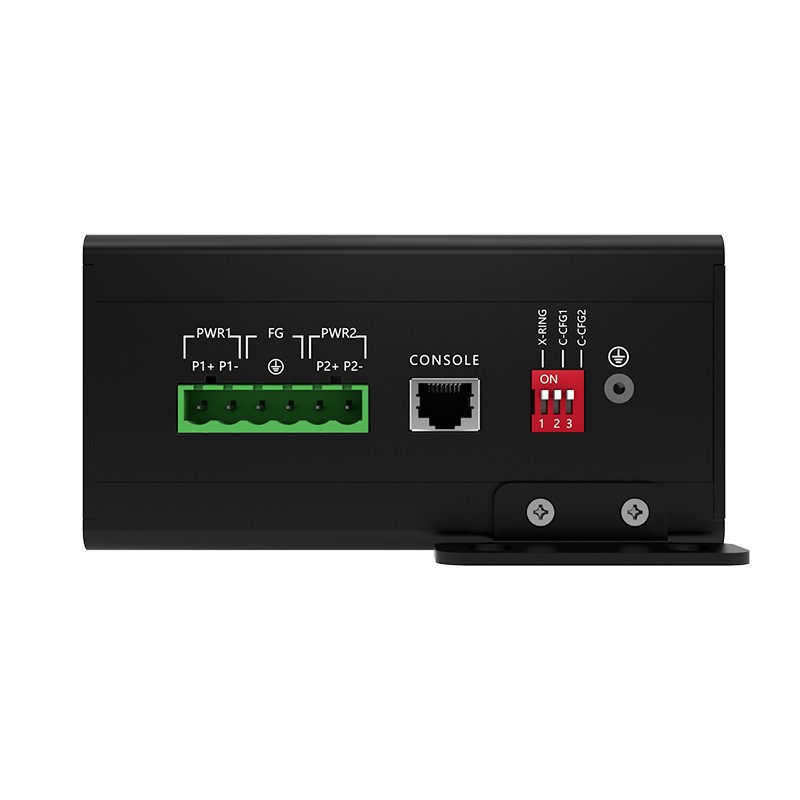

Non-polar DC power supply，power supply over-voltage protection and over-current protection.
Supports dual power supply redundancy (when a power supply is abnormal, the device can work stably and without network disconnection), which greatly improves the high availability of the device, thus providing a more stable and reliable network.
Industrial quality, adapt to extremely harsh environments
The working environment temperature range is -40 ° C to 85 ° C, and the relative humidity range of the working environment is 5% to 95% without condensation. Can adapt to a variety of harsh application environments.
Dustproof, lightning protection, surge protection, EFT, ESD, etc. all achieve a high protection level.
High speed unblocked forwarding
All ports provide the Gigabit-speed switching capability based Layer 2 to ensure that all ports are wire speed forwarding.
Supports up to 8K MAC addresses, which provides conditions for subsequent user expansion, which greatly facilitates user expansion and application.
Security control strategy
Supports IEEE 802.1x authentication. It performs the necessary identity authentication when the user accesses the network, and supports the function of filtering MAC addresses to ensure the legitimacy of access users.
Supports DHCP snooping, IP Source Guard, and ARP Inspection. They provide a complete access control solution to prevent unauthorized users from accessing the network.
Supports storm control to suppress network storms, prevent devices from being affected, and isolate storms to prevent other network areas from being affected by storms.
Port mirroring is enabled to monitor the services and traffic of the monitoring port to optimize deployment and malicious attack monitoring.
Carrier-class QoS capabilities
Supports 8 output queues per port, supports SP (Strict Priority), WRR (Weighted Round Robin), and SP+WRR scheduling algorithms to provide differentiated network services. Ensure priority forwarding or bandwidth guarantee for high priority traffic.
Supports flow-based QOS, classifies and classifies traffic based on traffic, limits speed, and supports port-based bidirectional rate limiting to meet the needs of users for multi-service identification, classification, and resource scheduling.
Convenient management
Supports WEB management, provide an easy-to-use operation interface, simple function configuration, and intuitively view device running status information.
Supports CLI, Telnet, SNMP and other management methods to make management easier.
