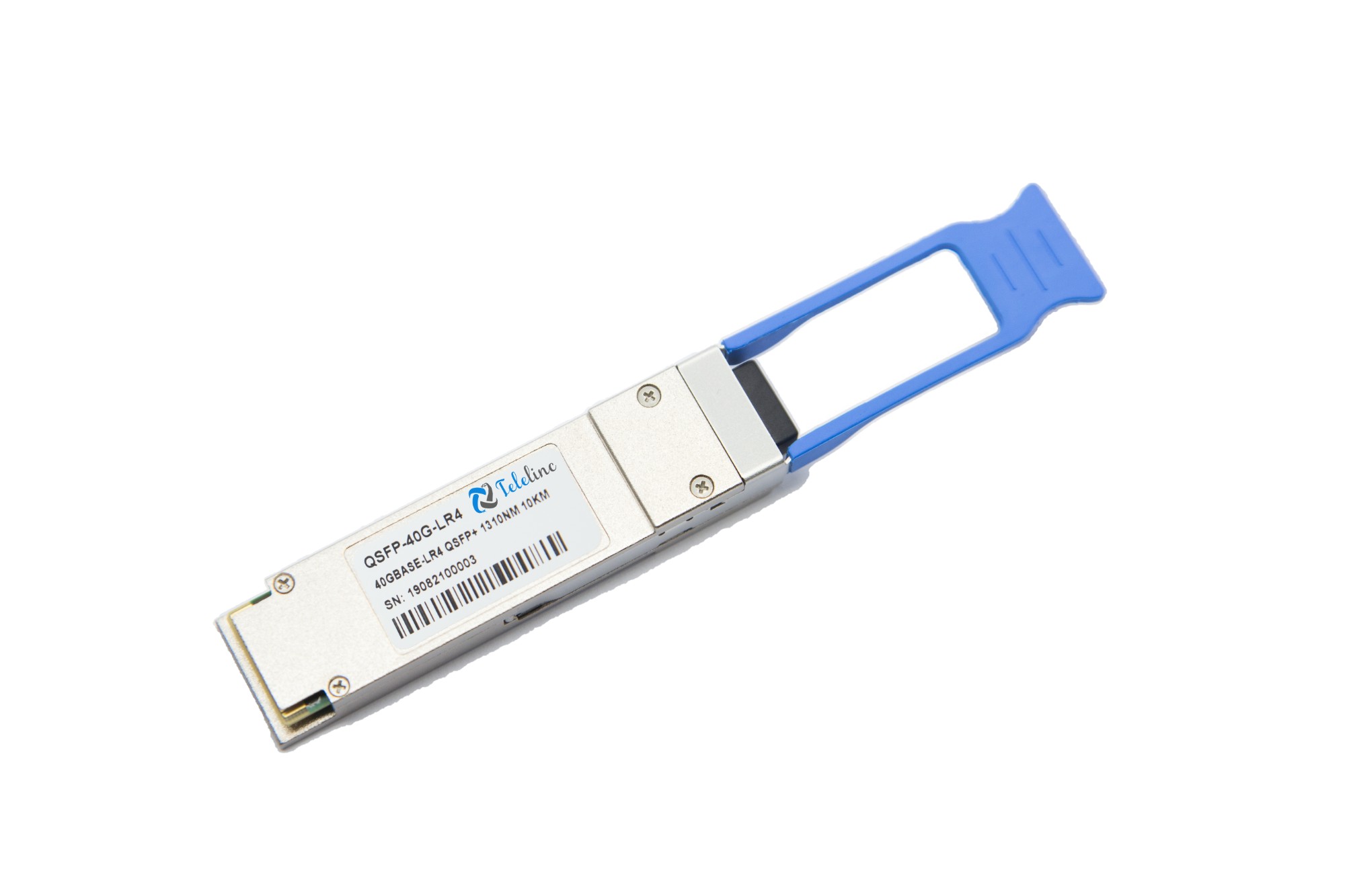

40Gbps CWDM 10KM QSFP+ Optical Transceiver
Features
Ø Transmission data rate up to 11.2Gbps per channel
Ø QSFP+ MSA compliant
Ø Compliant to IEEE 802.3ba specification for 40GBASE-LR4 links
Ø 4 CWDM un-cooled DFB lasers, using ITU G.694.2 wavelength
grid at 1270, 1290, 1310 and 1330nm
Ø High Sensitivity PIN-TIA with optical DEMUX
Ø Up to 10km reach over standard single mode fiber
Ø Compliant with QDR/DDR Infiniband data rates
Ø Hot pluggable electrical interface
Ø Lower power consumption
Ø Operating case temperature 0°C to +70°C
Ø 3.3V power supply
Ø RoHS 6 compliant（lead free）
Applications
Ø 40GBASE-LR4 40G Ethernet links
Ø Infiniband QDR and DDR interconnects
Ø Client-side 40G Telecom connections
Description
This product is a transceiver module designed for 2m-10km optical communication applications. The design is compliant to 40GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 148-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
