Description

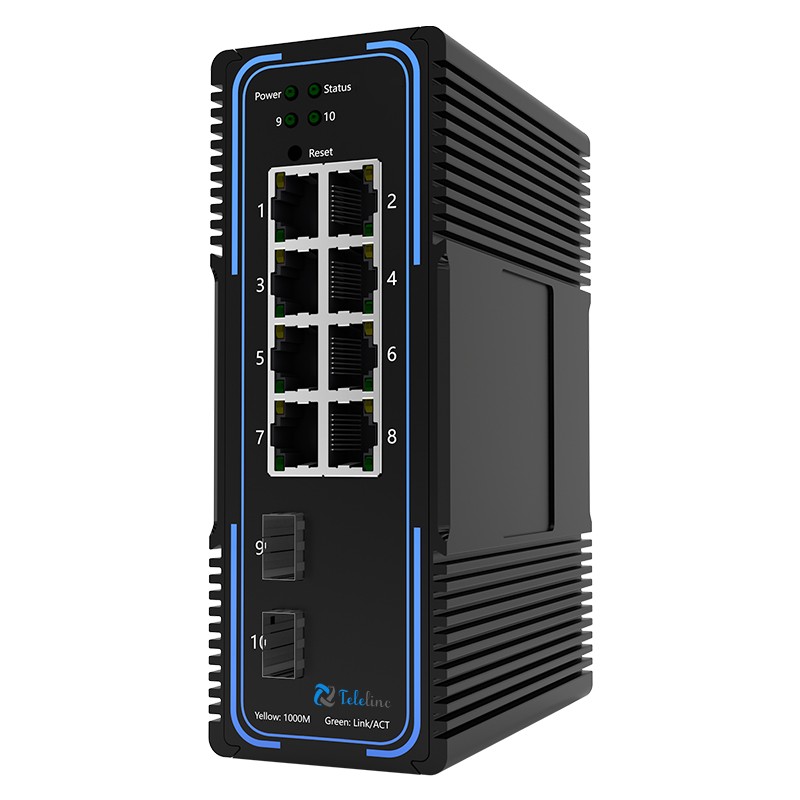

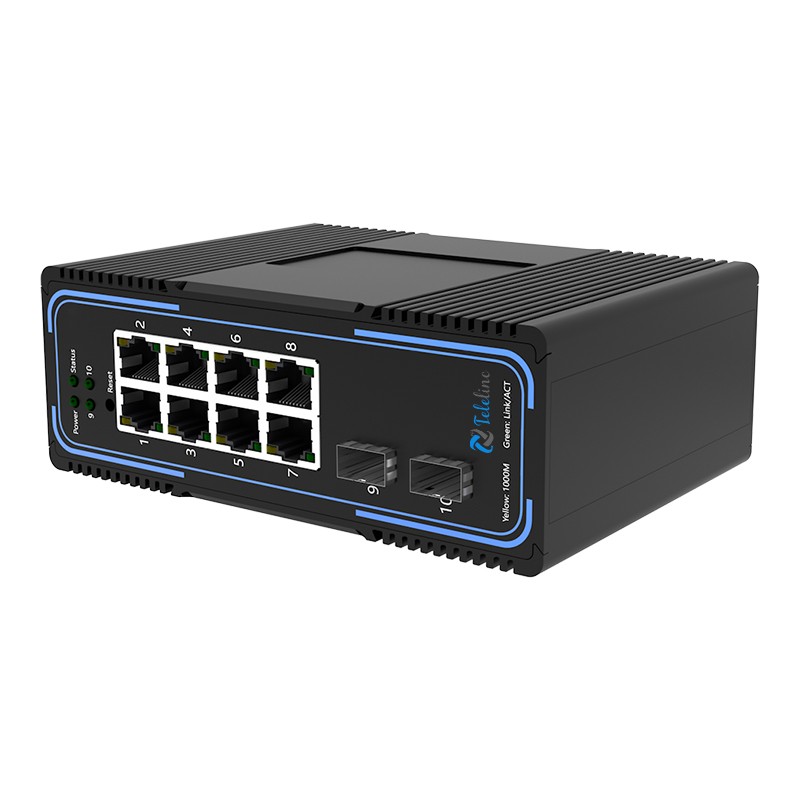

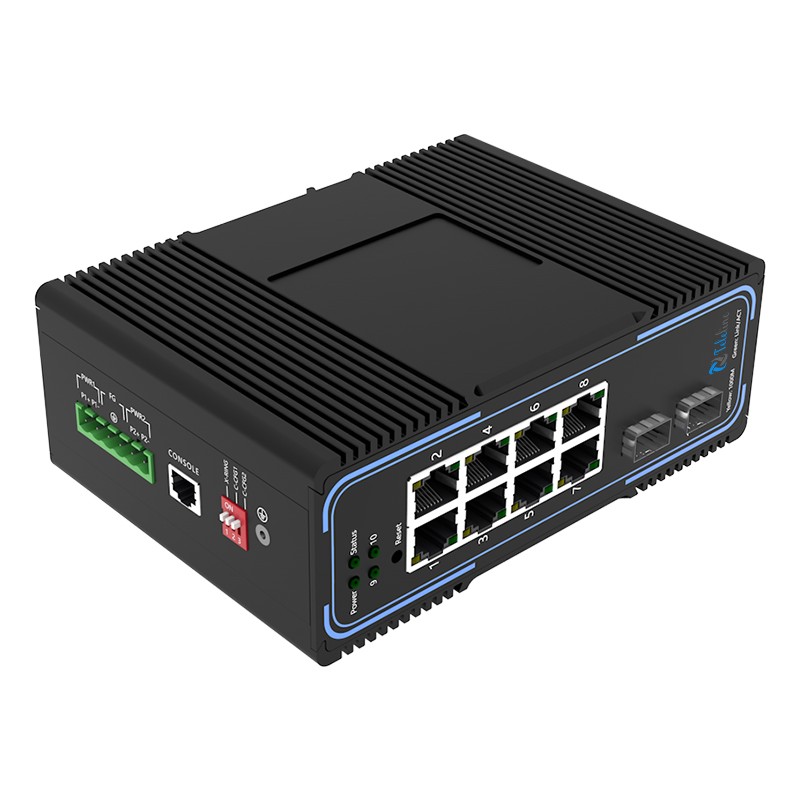

TLM500-8GP2GS 8Ports PoE 10/100/1000MBase and 2 SFP Slots Managed Industrial Switch
The TLM500 series switches provide superior industrial quality with high/low temperature and lightning protection through fanless cooling circuit design, wide operating temperature range and high protection level. They also integrate rich functions such as switching, security and management. Support for the public Ethernet Ring Protection Protocol (ERPS), greatly improving the flexibility and availability of networking, and enhancing the reliability and security of industrial networks.
Description
Downlink：8 * 10/100/1000Base-T
Ethernet Ports，and support POE
Uplink：2 * 1000BASE-X
SFP
Non-polar DC power supply
Forwarding performance：14.9Mpps
Specifications
Parameters
TLM500-8GP2GS
Downlink
8GT/8GT1GS/8GT2GS/8GP2GS: 8 *
10/100/1000Base-T Ethernet Ports
8GP2GS: 8 POE ports
Uplink
2 * 1000Base-X SFP

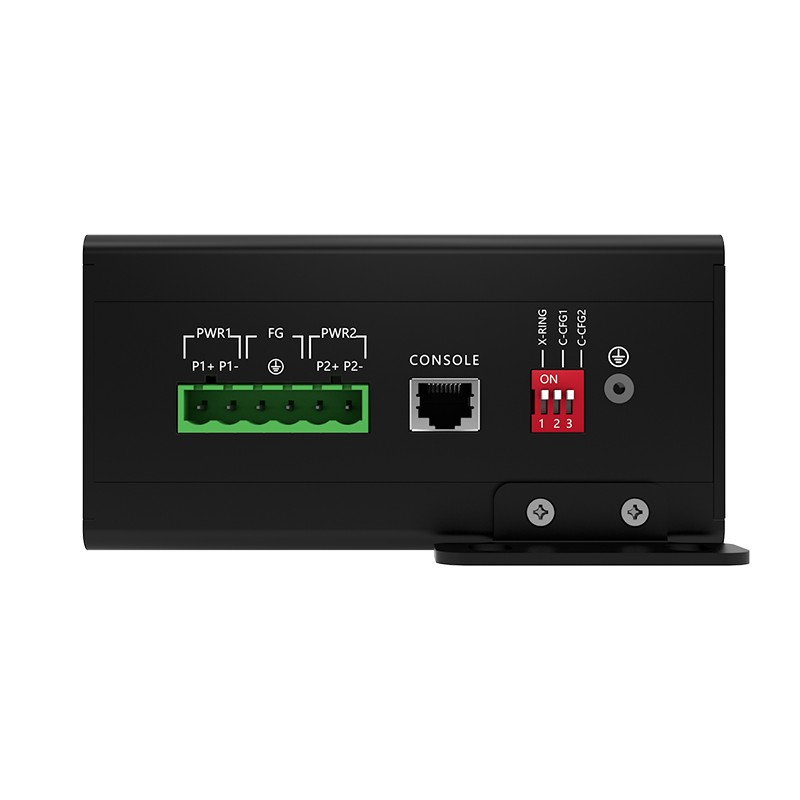

Power
Dual power redundancy
MAC address
8K
buffer(bits)
4M
Power Protect
Non-polar DC
power supply
Input voltage
DC:12V~54V （POE 52V）
Power consumption
< 15W （exlcude POE）
Operating environment
-40℃~+85℃
5% to 95%
(non-condensing)
Heat dissipation
Natural heat dissipation
DIP switch
One Key Ring
Installation
DIN/Bracket
IP Level
IP40
Surge
IEC 61000-4-5 Level 4
EFT
IEC 61000-4-4 Level 4
ESD
IEC 61000-4-2 Level 4
Features
Subsystem
Item
TLM500/TLM505
Layer 2 Features
Link Aggregation
Static aggregation;
Dynamic aggregation, LACP
Port Features
IEEE 802.3x flow
control;
Interface
counters
Mac-address table
IEEE 802.1q;
Static mac-address;
Dynamic mac-address;
Filtering mac-address;
MAC address capacity：8K
VLAN
4094 VLANs;
Port-based VLAN;
Access port，trunk port，hybrid
port
GVRP
Support
Mirror
Port-based mirror;
Ingress vlan-based
mirror;
Ingress flow-based
mirror
Spanning Tree
STP;
RSTP;
MSTP
Loop protect
Private loop
protection protocol
ERPS(G.8032)
Single ring
Multiple ring
Multiple instances
Private VLAN
Support
Port Isolate
Support
Layer 2
Multicast
IGMP V1 Snooping;
IGMP V2 Snooping;
IGMP V3 Snooping;
Source Port Check;
IGMP Fast Leave;
IGMP Filter;
IGMP Proxy
Security Features
ACL
L2 & L3 & L4 fields match;
Log, redirection, mirror and rate-limit action
QOS
QoS Class,
Remarking;
SP, WRR queue
scheduling;
Ingress port-based
rate-limit;
Ingress priority-based
rate-limit;
Egress port-based
rate-limit;
Egress
queue-based rate-limit;
Policy-based QoS;
8 queues per port;
Storm control
Dot1X
Port access control;
User access control;
Mac-address aceess control;
Radius server
IP Source
Guard
Dynamic entry(from
DHCP Snooping);
Static entry
ARP Inspection
Dynamic entry(from DHCP Snooping);
Static entry
Port Security
Support
Access Management
Supoort
Management Features
User
management
password
protection
SNMP
SNMPV2C;
SNMPV3
RMON
Statistics;
History;
Alarm;
Event
Web management
Web management;
HTTP 1.1;
HTTPS
Firmware
Upgrade
Support
Syslog
Support
IPV4/IPV6
IPV4;
IPV6
POE
IEEE802.3AF;
IEEE802.3AT;
Power Management Mode: class, energy-saving, static
Diagnosis
ping(ipv4);
ping(ipv6);
traceroute(ipv4);
traceroute(ipv6)
Application Features
NTP
NTP Client
DHCP Snooping
DHCP snooping table;
Trust port
DHCP Client
Support
Telnet
Telnet Server
SSH
SSH Server
TFTP
TFTP Client
