Description

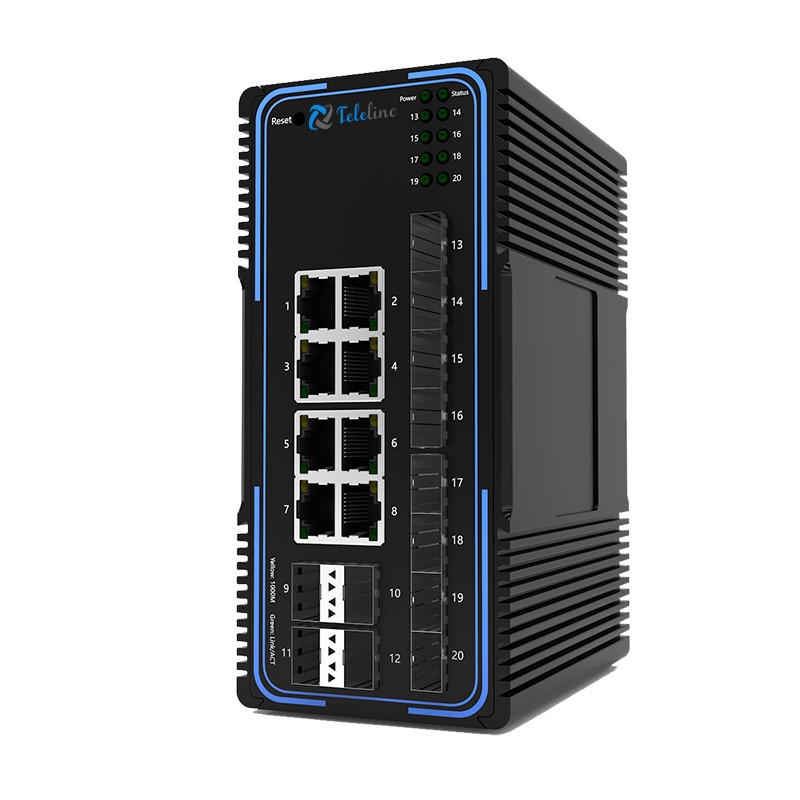

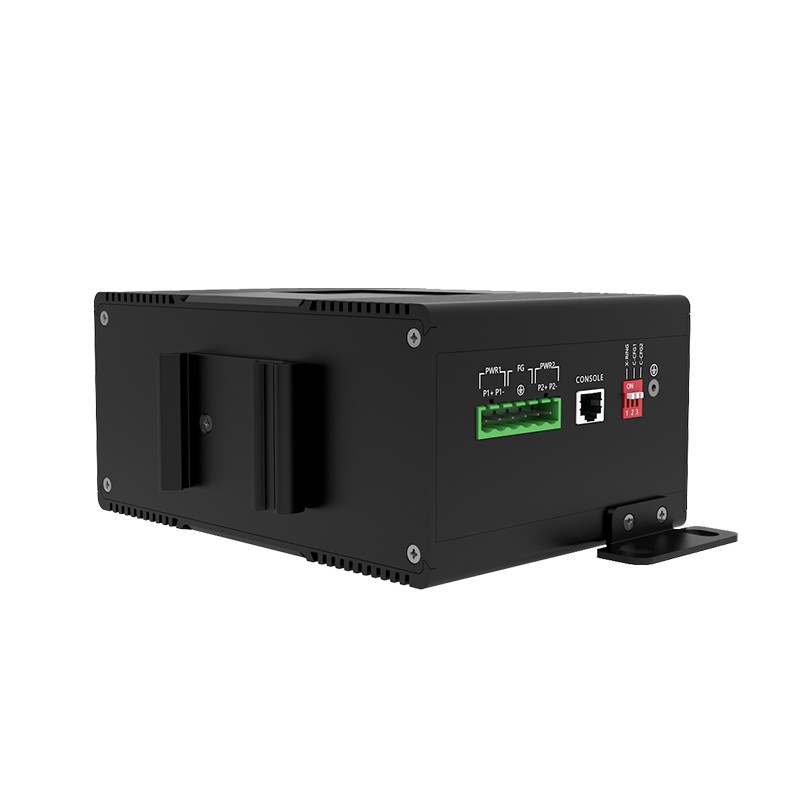

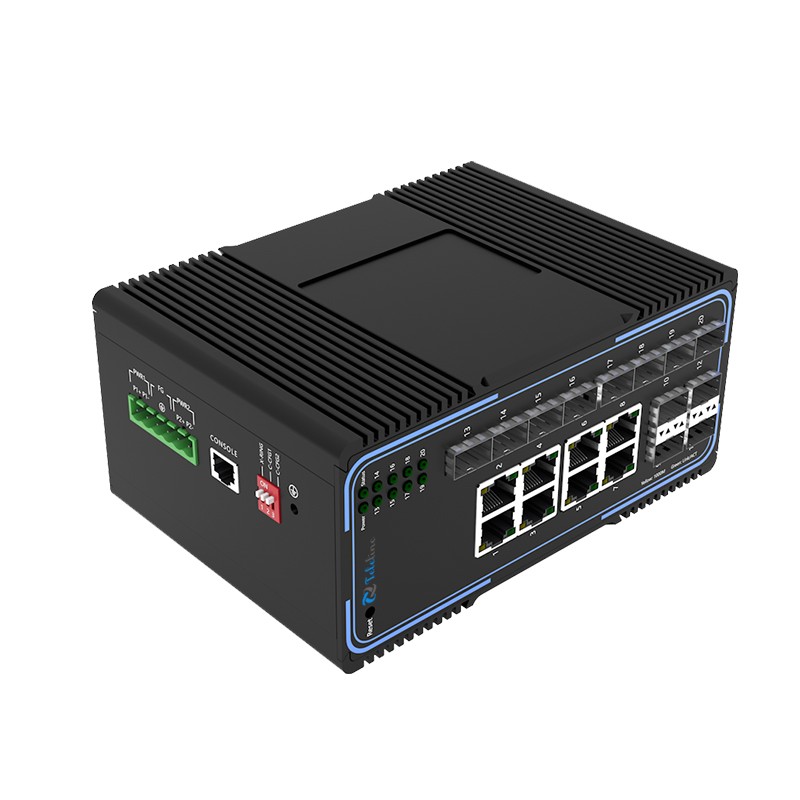

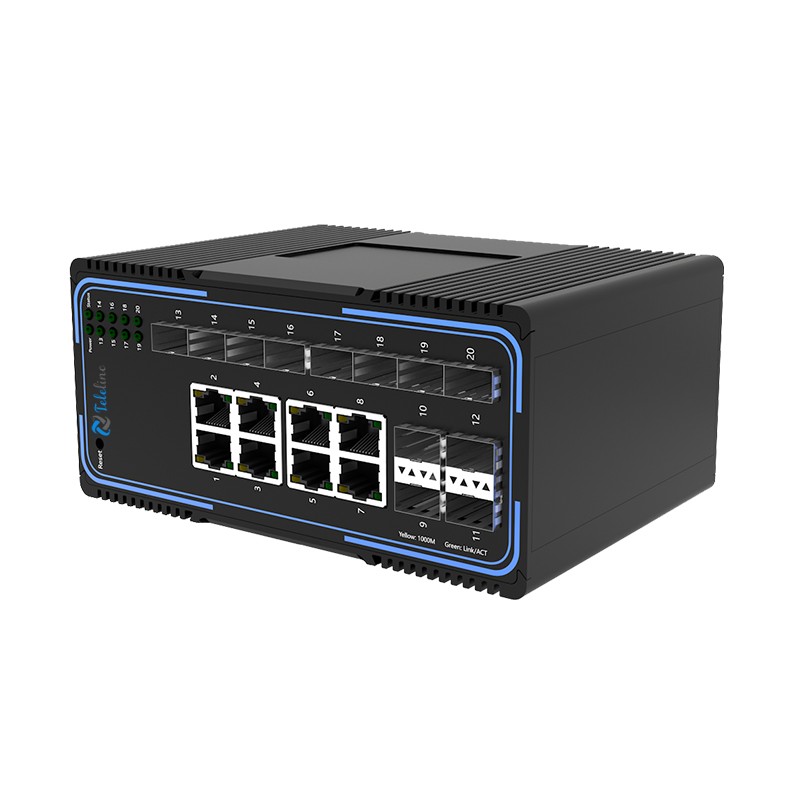

TLM505-8GT12GS 8 Ports 10/100/1000MBase and 12 SFP Slots Managed Industrial Switch
The TLM505 series switches provide superior industrial quality with high/low temperature and lightning protection through fanless cooling circuit design, wide operating temperature range and high protection level. They also integrate rich functions such as switching, security and management. Support for the public Ethernet Ring Protection Protocol (ERPS), greatly improving the flexibility and availability of networking, and enhancing the reliability and security of industrial networks.
Description
Downlink：8 * 10/100/1000Base-T Ethernet Ports
Uplink：12 * 1000BASE-X SFP
Non-polar DC power supply
Forwarding performance：29.8Mbps
Specifications
Parameters
TLM505-8GT12GS
Downlink
8 * 10/100/1000Base-T Ethernet
Ports
Uplink
12 * 1000Base-X SFP
Power
Dual power redundancy
MAC address
8K
buffer(bits)
4M
Power Protect
Non-polar DC power supply
Input voltage
DC:12V~54V
Power
consumption
< 25W
Operating
environment
-40℃~+85℃
5% to 95% (non-condensing)
Heat dissipation
Natural heat
dissipation
DIP switch
One Key Ring
Installation
DIN/Bracket
IP Level
IP40
Surge
IEC 61000-4-5
Level 4
EFT
IEC 61000-4-4 Level 4
ESD
IEC 61000-4-2
Level 4
